Immobilizer Editor

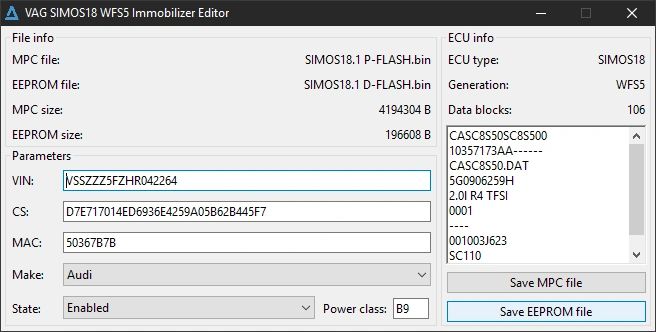

VAG Immobilizer Parameter Editor

AARK Kommander supports editing immobilizer parameters in VAG 7GV, AL552, BCM2, MED9, MEDC17 (ME17/MED17/EDC17), PCR2.1, PPD1.x, SDI4, SDI6, SDI7, SDI8, SDI9, SDI10, SDI21, SIMOS8, SIMOS10, SIMOS12, SIMOS18, DL382, DL501, DQ200MQB, DQ250MQB, DQ380, DQ381, DQ400, DQ500, VL300 and VL381 series control units.

    SUPPORTED CONTROL MODULES

    AARK Kommander currently supports viewing and modifying immobilizer data in the following VAG control units:

    Engine Control Units (ECUs)

    Bosch EDC17 (WFS4/WFS4UDS/WFS5)

    Bosch ME17 (WFS4/WFS4UDS/WFS5)

    Bosch MED17 (WFS4/WFS4UDS/WFS5)

    Bosch MED9.1 (encrypted WFS4/WFS5)

    Continental SDI4 (WFS4)

    Continental SDI6 (WFS5) (in testing)

    Continental SDI7 (WFS5) (in testing)

    Continental SDI8 (WFS5) (in testing)

    Continental SDI9 (WFS5) (in testing)

    Continental SDI10 (WFS5) (in testing)

    Continental SDI21 (WFS5) (in testing)

    Continental/Siemens PCR2.1 (WFS4)

    Continental/Siemens SIMOS8 (WFS4/WFS5)

    Continental SIMOS10 (WFS4)

    Continental SIMOS12 (WFS4/WFS5)

    Continental SIMOS18 (WFS5)

    Marelli 7GV (WFS4)

    Siemens PPD1.x (WFS4)

    Transmission Control Units (TCUs)

    Bosch DQ380 (WFS5)

    Bosch DQ381 (WFS5)

    Bosch DQ500 (WFS5)

    Temic DL382 (WFS5)

    Temic DL501 (WFS5)

    Temic DQ200MQB (WFS5)

    Temic DQ200MQB G2 (WFS5)

    Temic DQ250MQB (WFS5)

    Temic DQ400/DQ400e (WFS5)

    Temic VL300 (WFS4)

    Temic VL381 (WFS5)

    ZF AL552 (WFS5) (in testing)

    Other Control Units

    Audi ELV (WFS5)

    Audi EZS (WFS4)

    Audi A4/A5/Q5 BCM2 with external EEPROM (WFS5)

    Audi A4/A5/Q5 BCM2 with internal D-FLASH (WFS5)

    Audi A6/A7/A8 BCM2 with internal D-FLASH (WFS5)

    Immobilizer Removal / Immo-Off

    AARK Kommander currently supports disabling the immobilizer in the following control units:

    Engine Control Units (ECUs)

    Bosch EDC17

    Bosch ME17

    Bosch MED17

    Continental SIMOS12.1

    Continental SIMOS18.x

    Transmission Control Units (TCUs)

    Bosch DQ380

    Bosch DQ381

    Bosch DQ500

    Temic DL382

    Temic DQ200MQB

    Temic DQ200MQB G2

    Temic DQ250MQB

    Temic DQ400/DQ400e

    ZF AL552 (in testing)

    Cloning

    AARK Kommander currently supports full cloning of the following MPC locked control units:

    Engine Control Units (ECUs)

    Bosch EDC17

    Bosch ME17

    Bosch MED17

    Continental SDI6

    Continental SDI7

    Continental SDI8

    Continental SDI9

    Continental SDI10

    Continental SDI21

    Continental/Siemens PCR2.1

    Continental/Siemens SIMOS8

     Continental SIMOS12

    Continental SIMOS18

    Special Functions

    AARK Kommander currently supports the following special immobilizer functions:

    MM9RM10 12B to 16B CS

    With AARK Kommander the 12-byte CS for VAG Magneti-Marelli MM9RM10 instrument clusters can be converted to the 16-byte CS used by Immo5/WFS5 Bosch ME17.5.22 and ME17.5.24 ECUs.

    Requirements

    To modify the immobilizer coding parameters from a 7GV ECU a read of the EEPROM is required.


    To decrypt the immobilizer coding parameters from an Audi BCM2 A4/A5/A5 body controller a full read of the microcontroller flash and either the external EEPROM or internal D-FLASH if no external EEPROM is present is required.


    To decrypt the immobilizer coding parameters from an Audi BCM2 A6/A7/A8 body controller a full read of the microcontroller flash and internal D-FLASH is required. The key EEPROM or sync file (obtainable with VVDI2) is optionally required to obtain the ECU/TCU/ELV CS codes.


    To decrypt the immobilizer coding parameters from an MED9.1 encrypted WFS4 ECU a full read of the external-flash and EEPROM is required.


    To decrypt the immobilizer coding parameters from an MED9.1 encrypted WFS5 ECU a full read of the MPC and EEPROM is required.


    To decrypt the immobilizer coding parameters from an MEDC17 ECU a full boot mode read of the MPC flash and EEPROM is required.


    To decrypt the immobilizer coding parameters from a PCR2.1 ECU either the MCUID or a full boot mode read of the MPC flash and EEPROM is required.


    To decrypt the immobilizer coding parameters from a SDI4 ECU a read of the external EEPROM is required.


    To decrypt the immobilizer coding parameters from an SDI6/SDI7/SDI8/SDI9/SDI10 ECU a read of the external EEPROM and MCUID is required.


    To decrypt the immobilizer coding parameters from an SDI21 ECU a read of the D-FLASH and MCUID is required.


    To decrypt the immobilizer coding parameters from a SIMOS8.x ECU either the MCUID or a full boot mode read of the MPC flash and EEPROM is required.


    To decrypt the immobilizer coding parameters from a SIMOS10.x ECU a full boot mode read of the MPC flash and EEPROM is required.


    To decrypt the immobilizer coding parameters from a SIMOS12.x ECU a full boot mode read of the MPC flash and EEPROM is required.


    To decrypt the immobilizer coding parameters from a SIMOS18.x ECU a full boot mode read of the MPC flash and EEPROM is required.


    To modify the immobilizer coding parameters from a PPD1.x ECU a read of the EEPROM is required.
